EMI Tabs 6 port ganged rj45 ethernet connector 8p8c tab up

Name: EMI Tabs 6 port ganged rj45 ethernet connector 8p8c tab up
Brand: DGKYD
Price: 1 USD

China EMI Tabs 6 port ganged rj45 ethernet connector 8p8c tab up wholesale

Brand Name : DGKYD

Model Number : KRJ-56S16YGENL

Certification : RoHS/CE/UL/FCC/CE/ISO9001/ISO14001

Place of Origin : DongGuan of China

MOQ : 1 piece

Price : Please contact us to get the latest price.

Payment Terms : T/T, D/P, D/A, L/C, Western Union, MoneyGram

Supply Ability : 100K pcs/day

Delivery Time : 10 days

Packaging Details : Tray in Carton

LED : Y/G

TRANSFORMER : NONE

EMI TABS : YES

MOUNT ANGLE : RIGHT ANGLE

PANEL STOP : YES

NUMBER OF PORTS : 1X6

Contact Now

DGKYD supplies high quality, high performance connectors and custom solutions globally to the Military, Aerospace, Broadcast, Commercial and Harsh Environment industries.

EMI Tabs 6 port ganged rj45 ethernet connector , 8p8c tab up
ATTRIBUTE	ATTRIBUTE VALUE
TEMPERATURE	-40 to +70℃
SPEED	Cat 3
SHIELD PLATING MATERIAL	NICKEL
SHIELD EMI TABS	YES
SHIELD	METAL SHIELD
ROHS COMPLIANT	YES
PANEL STOP	YES
PCB MOUNT ANGLE	SIDE ENTRY
PACKAGE	DIP
NUMBER OF POSITIONS	8
NUMBER OF PORTS	1X6
NUMBER OF CONTACTS	8
LED OPTION	Y/G
LATCH	UP
KEYED	NO
HOUSING MATERIAL	PBT UL94V-0
CONTACT MATING AREA PLATING	GOLD FLASH PLATING
CONNECTOR TYPE	RJ45
CONNECTOR MATERIAL COLOR	BLACK

Configuration Features

Port Configuration Multiple

Body Features

Inverted Jack Face No
LED Color (Top Right) Green
Shield Material Copper Alloy
Shield Plating Material Tin over Nickel
LED Color (Top Left) Yellow

Contact Features

Solder Tail Contact Plating Material Tin over Nickel
Contact Mating Area Plating Thickness 0.6 µin
Contact Base Material Phosphor Bronze

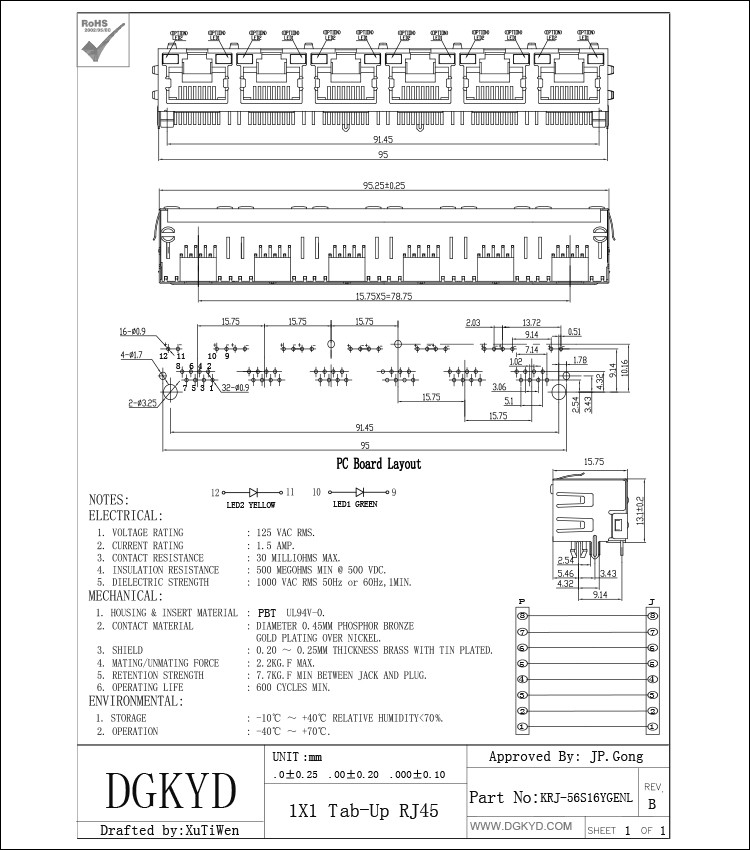

► Product Drawing

EMI Tabs 6 port ganged rj45 ethernet connector 8p8c tab up
