Metal shielded quad port rj45 keystone jack, without LED, RoHS compliant

Name: Metal shielded quad port rj45 keystone jack without LED RoHS compliant
Brand: DGKYD
Price: 1 USD

China Metal shielded quad port rj45 keystone jack, without LED, RoHS compliant wholesale

Brand Name : DGKYD

Model Number : KRJ-5921S14F457NL

Certification : RoHS/CE/UL/FCC/CE/ISO9001/ISO14001

Place of Origin : DongGuan of China

MOQ : 1 piece

Price : Please contact us to get the latest price.

Payment Terms : T/T, D/P, D/A, L/C, Western Union, MoneyGram

Supply Ability : 100K pcs/day

Delivery Time : 10 days

Packaging Details : Tray in Carton

PIN : 8 PINS

RJ45 Suitable : for CAT5&6 Ethernet Cable or UTP

Application : lan,bridge,PC,router,usb hub network rj45 and all ethernet devices

Gender : Female

Product Name : RJ45 NETWORK connector

Contact Now

► Product Description

KRJ-5921S14F457NL metal shielded quad port rj45 connector

► Product Datasheet

Part Number	KRJ-5921S14F457NL	Brand	DGKYD/OEM/ODM
Place of Origin	Guangdong of China	Certification	CE /UL/FCC/Reach/RoHS
Product Type	Connector-Modular	Connector Style	Jack
Jack Type	RJ45	Connector Type	Modular Jack
Latch Style	Standard	Latch	down
Filter	Without internal filter	LED Option	Without LED
LED Color	N/A	Panel Stops	Without Panel Stops
Shielded	shielded	Applies To	Printed Circuit Board
Performance Speed	10/100/1000 BASE-TX	Grounding Options	Panel Ground and PCB Ground
Port Configuration	4 port	Number of Positions	8
Jack Configuration	1 x 4	Terminals per Port	8
Shield Material	Copper Alloy preplated with Nickel	PCB Mounting Orientation	Side Entry (Right Angle)
Contact Mating Area Plating Material	Gold 0.6u	Contact Base Material	Phosphor Bronze
Solder Tail Contact Plating Material	Tin-Lead over Nickel	PCB Mounting Style	Through Hole
Termination Method to PC Board	Through Hole-Press-Fit	Board Lock	With/Without Board Lock
Housing Material	PBT Polyester	Housing Color	Black
Housing Material Temperature	Standard	UL Flammability Rating	UL 94V-0

Data transmission

• Supports 10/100 Base-T, 1G Base-T, and
10G Base-T Ethernet
• Options available to support CAT5E and CAT6A premise wiring systems (Consult Factory)

Applications

• Rugged computing equipment
• Industrial Environments
• Military Communication
• Marine Equipment
• Medical devices
• Test Equipment
• Connectivity for non-office environments
• Renewable Energy Industry

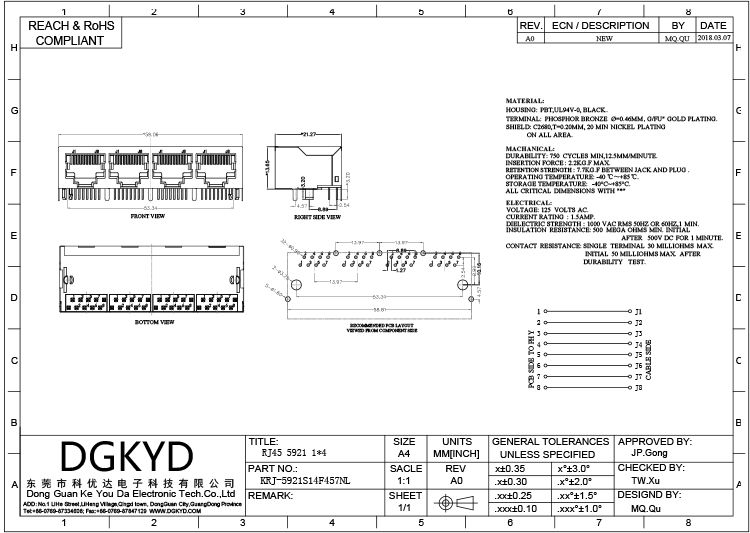

► Product Drawing

Metal shielded quad port rj45 keystone jack, without LED, RoHS compliant
