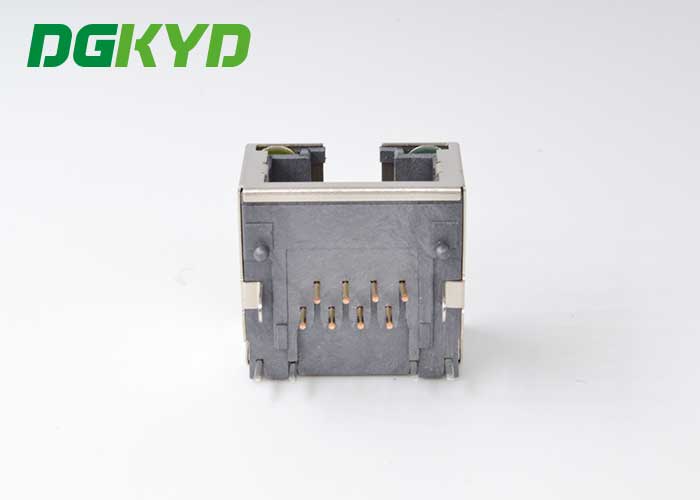

8p8c Crystal Head Socket Single Port Rj45 Connector jack

Name: 8p8c Crystal Head Socket Single Port Rj45 Connector jack
Brand: DGKYD
Price: 1 USD

China 8p8c Crystal Head Socket Single Port Rj45 Connector jack wholesale

Brand Name : DGKYD

Model Number : DGKYD60S1188AB1A6DY1

Certification : RoHS/CE/FCC/CE/ISO9001/ISO14001

Place of Origin : DongGuan of China

MOQ : Negotiable

Price : Negotiable

Payment Terms : L/C, D/A, D/P, T/T, Western Union, MoneyGram

Supply Ability : 60000pcs per day

Delivery Time : 7-14days

Packaging Details : Tray in Carton

Product Name : Rj45 Connector Jack

Latch : Tab up

Application : PC,router,usb hub network rj45 etc.

Gender : Female

Transformer : Without transformer

Connector Style : Jack

Contact Now

Single port rj45 connector 8p8c crystal head socket

Application

NETWORKING PRODUCTS: NIC, HUB, SWITCH, ROUTER, BRIDGE,WORK

Paramters

Part Number	DGKYD60S1188JB1A6DY1	Brand	DGKYD/OEM/ODM
Product Type	Connector-Modular	Connector Style	Jack
Jack Type	RJ45	Connector Type	Modular Jack
Latch Style	Standard	Latch	up
Filter	Without Filter	LED Option	With LED
LED Color	L-Yellow / R-Green	Panel Stops	Without Panel Stops
Shielded	With metal shield	Applies To	Printed Circuit Board
Port Configuration	Single Port	Number of Positions	8
Jack Configuration	1 x 1	Terminals per Port	8
Shield Material	Copper Alloy preplated with Nickel	PCB Mounting Orientation	Side Entry (Right Angle)
Contact Mating Area Plating	Gold Fu	Contact Base Material	Phosphor Bronze
Solder Tail Contact Plating Material	Tin-Lead over Nickel	PCB Mounting Style	Through Hole
Termination Method to PC Board	Through Hole-Press-Fit	Board Lock	With/Without Board Lock
Housing Material	LCP Polyester	Housing Color	Black
Housing Material Temperature	Standard	UL Flammability Rating	UL 94V-0

Drawing

8p8c Crystal Head Socket Single Port Rj45 Connector jack

Pictures

Our Service

World’s Leader Supplier Of Integrated RJ45 Connector And Discrete Magnetic Transformers
100% Guarantee Qualtiy
•Manufactured Under Strict Controls.
•100% Tested (Not Just Batch Tested)
•DGKYD Is OEM Of FOXCONN For 6 Years
•Successful Customer: PANASONIC/FOXCONN/HUAWEI/ZTE…
Competitive Price And Service
•More Competitive Price Than Pulse Tyco Halo And Amphenol
•Delivery Time:1-2 Weeks After Orders
•Free Samples Are Available
•Provide New Design For Customer Requirements
DGKYD Corporate Policy
•The Corporate Goal Is To Achieve The Highest Level Of Customer Satisfaction
Through Continuous Improvements In Quality, Delivery And Service
• DGKYD Is Committed To And Expects Quality Performance From Every Employee
• The Company Standard Is Defect-Free Products And Services
