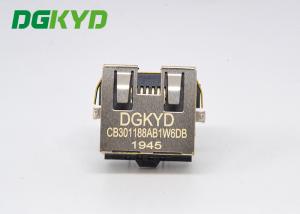

DIP Single Port Shielded Band Light Sink 3.0 Low Profile RJ45

Name: DIP Single Port Shielded Band Light Sink 30 Low Profile RJ45
Brand: DGKYD
Price: 1 USD

Brand Name : DGKYD

Model Number : DGKYDCB301188AB1W6DB

Certification : RoHS/CE/FCC/CE/ISO9001/ISO14001

Place of Origin : DongGuan of China

MOQ : Negotiable

Price : Negotiable

Payment Terms : L/C, D/A, D/P, T/T, Western Union, MoneyGram

Supply Ability : 60000pcs per day

Delivery Time : 7-14days

Packaging Details : Tray in Carton

Product Name : Low Profile RJ45

Connector type : Jack

Application : PC,router,usb hub network rj45 etc.

Gender : Female

Transformer : RJ45 Without Transformer

Height Profile : Extra Low profile

Contact Now

RJ45 connector sink 3.0 DIP single port filter with shielded band light

Application

HUB, SWITCH, ROUTER, BRIDGE,WORK

Paramters

ATTRIBUTE	ATTRIBUTE VALUE
TEMPERATURE	-40 to +85℃
GROUNDING OPTIONS	Panel Ground and PCB Ground
SHIELD PLATING MATERIAL	NICKEL
SHIELD EMI TABS	YES
SHIELD	METAL SHIELD
ROHS COMPLIANT	YES
PANEL STOP	NONE
PCB MOUNT ANGLE	SIDE ENTRY
PACKAGE	DIP
CONNECTOR & CONTACT TERMINAATES TO	Printed Circuit Board
NUMBER OF PORTS	1X1
NUMBER OF CONTACTS	8
LED OPTION	L-Yellow / R-Green
LATCH ORIENTATION	LATCH DOWN
HOUSING MATERIAL	LCP UL94V-0
CONTACT MATING AREA PLATING	GOLD FLASH PLATING
CONNECTOR TYPE	RJ45
CONNECTOR MATERIAL COLOR	BLACK

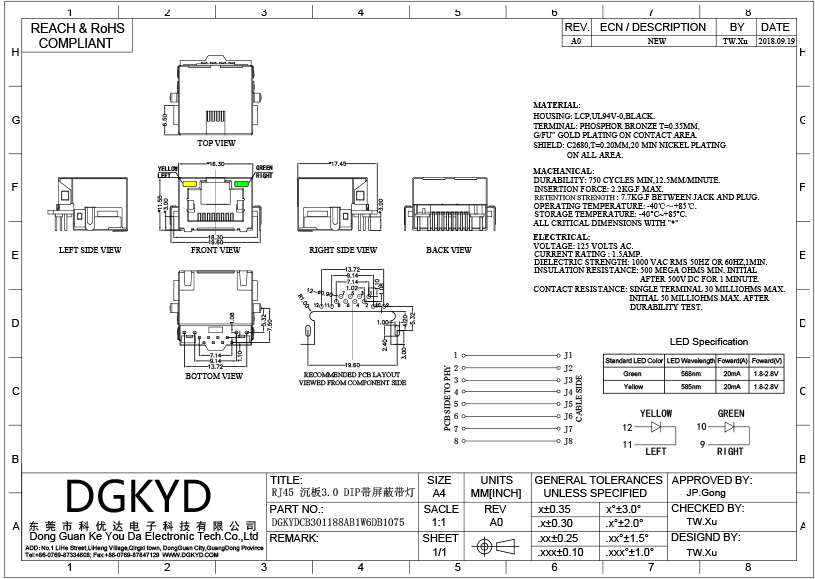

Drawing

DIP Single Port Shielded Band Light Sink 3.0 Low Profile RJ45

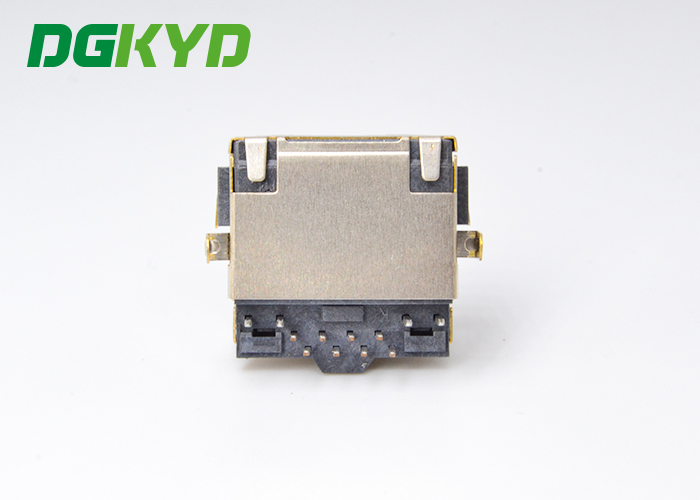

Pictures

DIP Single Port Shielded Band Light Sink 3.0 Low Profile RJ45

Our Service

World’s Leader Supplier Of Integrated RJ45 Connector And Discrete Magnetic Transformers
100% Guarantee Qualtiy
•Manufactured Under Strict Controls.
•100% Tested (Not Just Batch Tested)
•DGKYD Is OEM Of FOXCONN For 6 Years
•Successful Customer: PANASONIC/FOXCONN/HUAWEI/ZTE…
Competitive Price And Service
•More Competitive Price Than Pulse Tyco Halo And Amphenol
•Delivery Time:1-2 Weeks After Orders
•Free Samples Are Available
•Provide New Design For Customer Requirements
DGKYD Corporate Policy
•The Corporate Goal Is To Achieve The Highest Level Of Customer Satisfaction
Through Continuous Improvements In Quality, Delivery And Service
• DGKYD Is Committed To And Expects Quality Performance From Every Employee
• The Company Standard Is Defect-Free Products And Services
