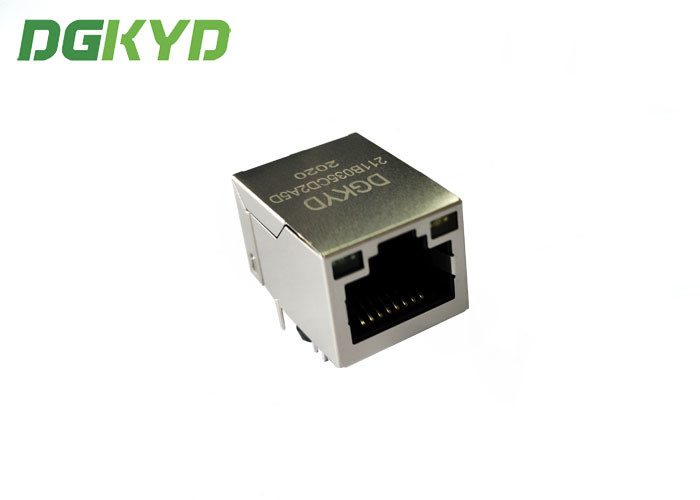

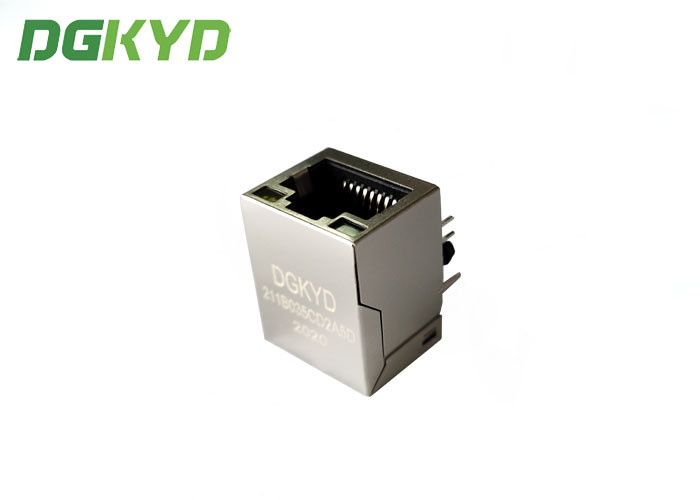

Single Port RJ45 With LED TAB-UP RJ45 Network Connector
Paramters
| Part Number | DGKYD111Q070AB1A1D | Brand | DGKYD/OEM/ODM | | Place of Origin | Guangdong of China | Certification | RoHS/CE/FCC/CE/ISO9001/ISO14001 | | Product Type | Connector-Modular | Connector Style | Jack | | Jack Type | RJ45 | Connector Type | Modular Jack | | Latch Style | Standard | Latch | Down | | Filter | With Filter | LED Option | With LED | | LED Color | L-Yellow,R-Green | Panel Stops | With Panel Stops | | Shielded | With metal shield | Applies To | Printed Circuit Board | | Performance Speed | 10/100/1000 BASE-T/TX | Suitable for welding type | Reflowsolding(Alternative). | | Port Configuration | Single Port | Number of Positions | 10 | | Jack Configuration | 1 x 1 | Terminals per Port | 8 | | Shield Material | Copper Alloy preplated with Nickel | PCB Mounting Orientation | Side Entry (Right Angle) | | Contact Mating Area Plating Material | Gold 6u/15u/30u/50u | Contact Base Material | Phosphor Bronze | | Solder Tail Contact Plating Material | Tin-Lead over Nickel | PCB Mounting Style | Through Hole | | Termination Method to PC Board | Through Hole-Press-Fit | Board Lock | With/Without Board Lock | | Housing Material | PBT Polyester | Housing Color | Black | | Housing Material Temperature | Standard | UL Flammability Rating | UL 94V-0 | |
Competitive Advantage:
Keyouda has various types of appearance and many kinds of internal schematic products,high quality,
customer firstly ,100% test, 0 defect, short lead time are our best advantages
Applications:
Integrated RJ45 connector main used to :
• 10/100/1000M net card,PCMCIA net card,USB Hub,network switch,router,fiber optic transceivers,
optical transceiver,IP phone, internet set-top box,internet camera,net bridge,computer,telecommunication,
MODEM,HomePNA,DSL／ADSL and so on.
► Our Service
World’s Leader Supplier Of Integrated RJ45 Connector And Discrete Magnetic Transformers
100% Guarantee Qualtiy
•Manufactured Under Strict Controls.
•100% Tested (Not Just Batch Tested)
•DGKYD Is OEM Of FOXCONN For 6 Years
•Successful Customer: PANASONIC/FOXCONN/HUAWEI/ZTE…
Competitive Price And Service
•More Competitive Price Than Pulse Tyco Halo And Amphenol
•Delivery Time:1-2 Weeks After Orders
•Free Samples Are Available
•Provide New Design For Customer Requirements
DGKYD Corporate Policy
•The Corporate Goal Is To Achieve The Highest Level Of Customer Satisfaction
Through Continuous Improvements In Quality, Delivery And Service
• DGKYD Is Committed To And Expects Quality Performance From Every Employee
• The Company Standard Is Defect-Free Products And Services
Product Tags:
|
|
