Cat5 RJ45 Ethernet connector with common mode choke , G/Y LED

Name: Cat5 RJ45 Ethernet connector with common mode choke GY LED
Brand: DGKYD
Price: 1 USD

China Cat5 RJ45 Ethernet connector with common mode choke , G/Y LED wholesale

Place of Origin : DongGuan of China

Brand Name : DGKYD

Certification : RoHS/CE/UL/FCC/CE/ISO9001/ISO14001

MOQ : 1 piece

Packaging Details : Tray in Carton

Delivery Time : 10 days

Payment Terms : T/T, D/P, D/A, L/C, Western Union, MoneyGram

Supply Ability : 100K pcs/day

Model Number : KRJ-003ANL

Price : Please contact us to get the latest price.

Gender : Female RJ45

LEDS/EMI fingers : For optional

Product Name : RJ45 Ethernet Connector

Feature : High performance,with magnetics & LED

RJ45 Suitable : for CAT5&6 Ethernet Cable or UTP

Application : lan,bridge,PC,router,usb hub network rj45 and all ethernet devices

LED Color : Green/Yellow

Operating temperature : - 40 ℃ ~ 85 ℃

Storage temperature : Storage temperature

Contact Now

Cat5 RJ45 Ethernet connector with common mode choke , G/Y LED

Part Number	KRJ-003ANL	Brand	DGKYD/OEM/ODM
Place of Origin	Guangdong of China	Certification	CE /UL/FCC/Reach/RoHS
Product Type	Connector-Modular	Connector Style	Jack
Jack Type	RJ45	Connector Type	Modular Jack
Latch Style	Standard	Latch	Down
Filter	With Filter	LED Option	With LED
LED Color	Green/Yellow	Panel Stops	Without Panel Stops
Shielded	Metal shielded	Applies To	Printed Circuit Board
Performance Speed	10/100 BASE-T	Grounding Options	Panel Ground and PCB Ground
Port Configuration	Single	Number of Positions	8
Jack Configuration	1 x 1	Terminals per Port	8
Shield Material	Copper Alloy preplated with Nickel	PCB Mounting Orientation	Side Entry (Right Angle)
Contact Mating Area Plating Material	Gold 6u/15u/30u/50u	Contact Base Material	Phosphor Bronze
Solder Tail Contact Plating Material	Tin-Lead over Nickel	PCB Mounting Style	Through Hole
Termination Method to PC Board	Through Hole-Press-Fit	Board Lock	With/Without Board Lock
Housing Material	PBT Polyester	Housing Color	Black
Housing Material Temperature	Standard	UL Flammability Rating	UL 94V-0

This electronic component has been designed and developed for usage in general electronic equipment. Before incorporating this component into any equipment where higher safety and reliability is especially required or if there is the possibility of direct damage or injury to human body, for example in the range of aerospace, aviation, nuclear control, submarine, transportation, (automotive control, train control, ship control), transportation signal, disaster prevention, medical, public information network etc, Würth Elektronik eiSos GmbH must be informed before the design-in stage. In addition, sufficient reliability evaluation checks for safety must be performed on every electronic component which is used in electrical circuits that require high safety and reliability functions or performance.

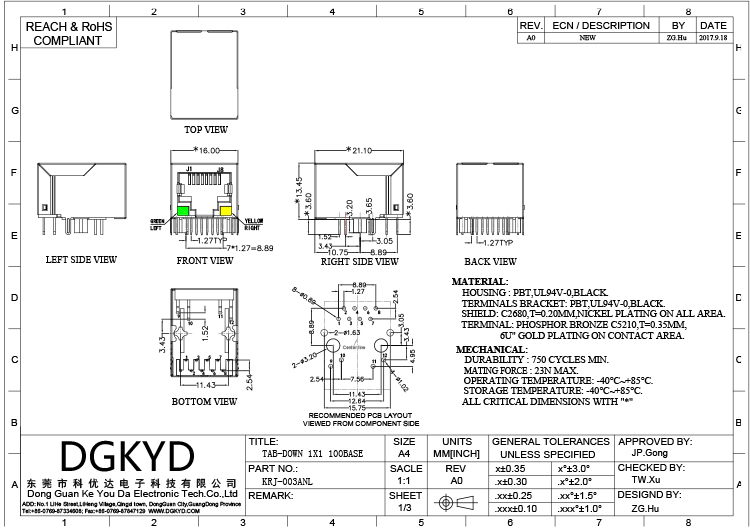

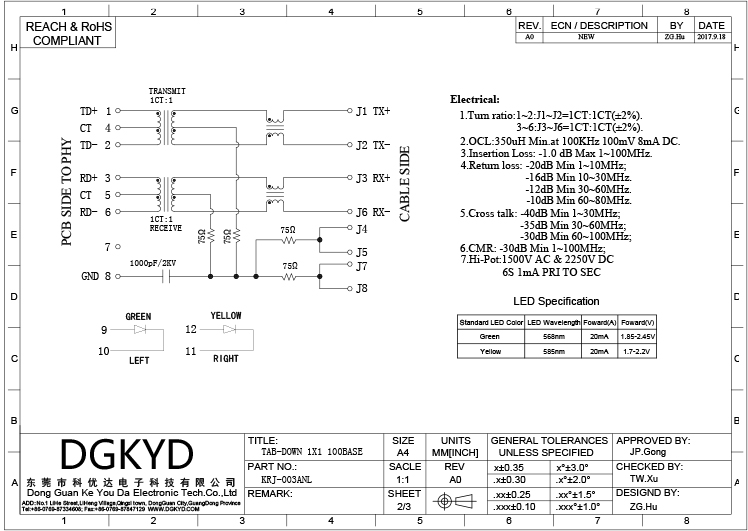

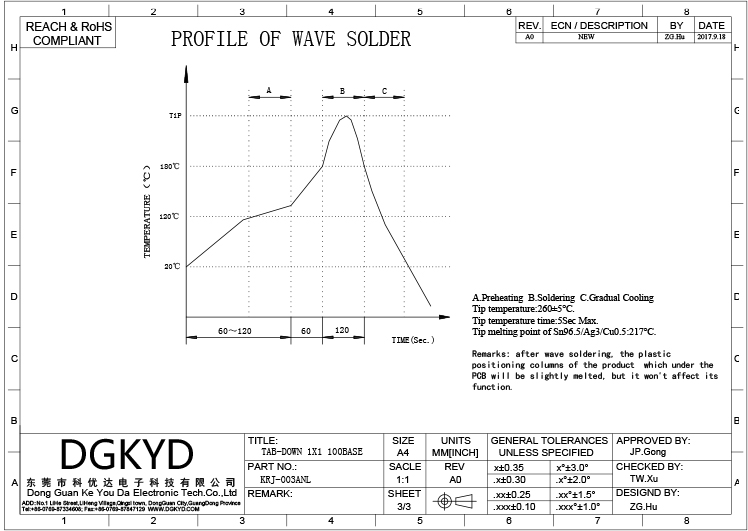

► Product Drawing

Cat5 RJ45 Ethernet connector with common mode choke , G/Y LED
