Gigabit Ethernet Filter RJ45 Network Port Connector Shielded Light Socket Gold-Plated 30U Modular Block Interface

Name: Gigabit Ethernet Filter RJ45 Network Port Connector Shielded Light Socket GoldPlated 30U Modular Block Interface
Brand: DGKYD
Price: 1 USD

China Gigabit Ethernet Filter RJ45 Network Port Connector Shielded Light Socket Gold-Plated 30U Modular Block Interface wholesale

Brand Name : DGKYD

Model Number : DGKYD811Q008FA3A2DB057

Certification : RoHS/CE/UL/FCC/CE/ISO9001/ISO14001

Place of Origin : DongGuan of China

MOQ : Negotiation

Price : Please contact us to get the latest price.

Payment Terms : T/T, D/P, D/A, L/C, Western Union, MoneyGram

Supply Ability : 100K pcs/day

Delivery Time : 15 days

Packaging Details : 720 Tray in Carton

Product type : RJ45 1000m Connector

Encapsulation method : single In-line Package

PCB Mount Style : DIP

Material : PBT

Shield : brass

Number of pins : 12

Dimension (mm) : 17.78* 24.13*11.3

Gold plating on contact pins : 30U

Storage temperature : - 40 ℃ ~ 85 ℃

LED : Green-Green

RJ45 Connector Tab Direction : Tap UP

Contact Now

Gigabit Ethernet filter RJ45 network port connector shielded light socket gold-plated 30U modular block interface

• The Corporate Goal Is To Achieve The Highest Level Of Customer Satisfaction

• Through Continuous Improvements In Quality, Delivery And Service

• Delivery Time:2-3 Weeks After Orders

• Provide New Design For Customer Requirements

Parameters

Part Number	DGKYD811Q008FA3A2DB057	Brand	DGKYD/OEM/ODM
Place of Origin	Guangdong of China	Certification	RoHS/CE/FCC/CE/ISO9001/ISO14001
Product Type	Connector-Modular	Connector Style	Jack
Jack Type	RJ45	Connector Type	Modular Jack
Latch Style	Standard	Latch	TAB-UP
Filter	With Filter	LED Option	With LED
LED Color	Yes.Green/Green	Panel Stops	With Panel Stops
Shielded	Yes	Applies To	Printed Circuit Board
Performance Speed	10/100/1000 BASE-T/TX	Suitable for welding type	Reflowsolding(Alternative).
Port Configuration	Single Ports	Number of Positions	12
Jack Configuration	1X1	Terminals per Port	8
Shield Material	Copper Alloy preplated with Nickel	PCB Mounting Orientation	Side Entry (Right Angle)
Contact Mating Area Plating Material	Gold 6u/15u/30u/50u	Contact Base Material	Phosphor Bronze
Solder Tail Contact Plating Material	Tin-Lead over Nickel	PCB Mounting Style	Through Hole
Termination Method to PC Board	Through Hole-Press-Fit	Board Lock	With/Without Board Lock
Housing Material	PBT Polyester	Housing Color	Black
Housing Material Temperature	Standard	UL Flammability Rating	UL 94V-0

Why Choose Us

DGKYD specializes in manufacturing RJ45 connectors and network transformers, and a high-tech enterprise integrating R&D, production, sales and service, with years of manufacturing history in connectors and transformers.

Our strengths:

Interface type: crystal head application: 10 / 100 / 1000BASE-T Ethernet

Type: RJ45 built in magnetics

Working frequency: high frequency characteristic: filtering, anti-interference

Working temperature: 0 ℃ - 70 ℃,

Storage temperature: - 40 ℃ - 85 ℃

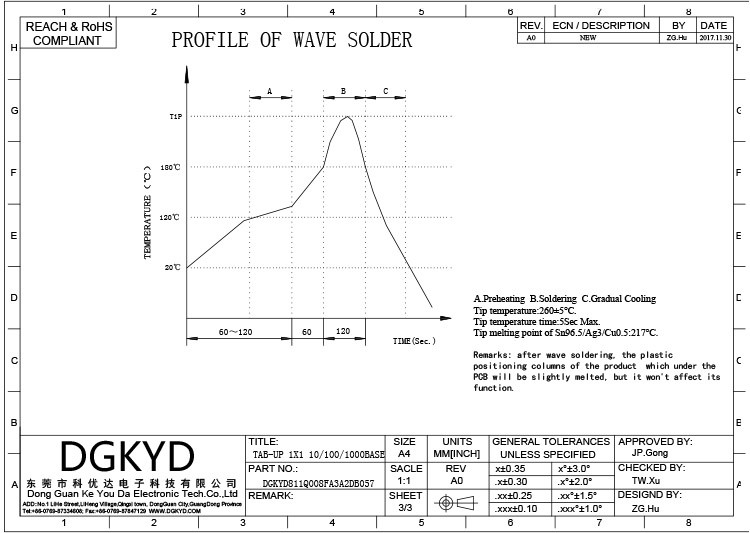

Lead free soldering: wave soldering height up to 265 ℃

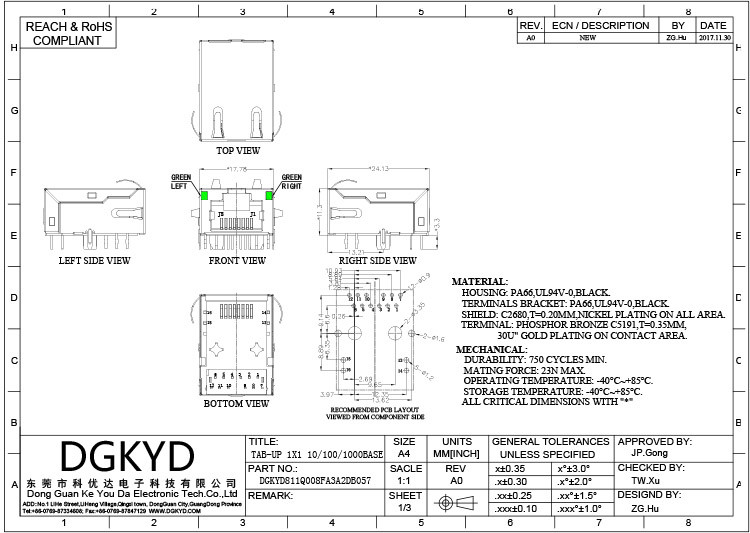

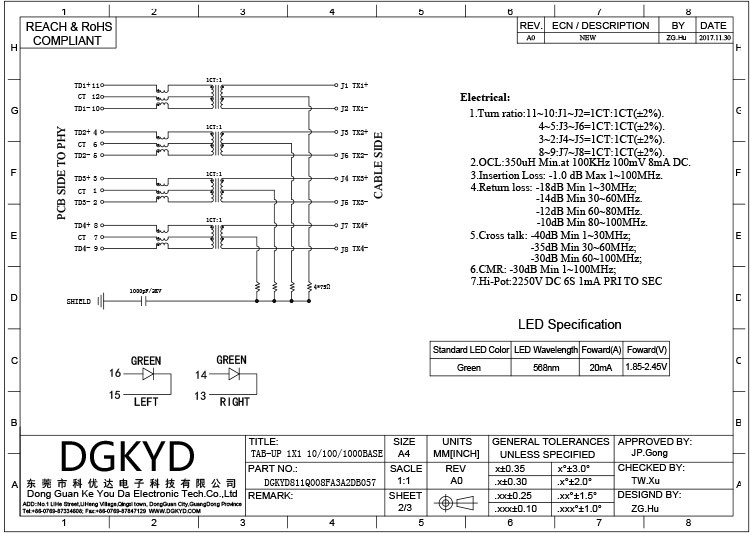

Drawings

Gigabit Ethernet Filter RJ45 Network Port Connector Shielded Light Socket Gold-Plated 30U Modular Block Interface
