RJ45 horizontal interface 8P8C with light, shielding spring, round needle mesh port DGKYD561288DB1A1DY1

Name: RJ45 horizontal interface 8P8C with light shielding spring round needle mesh port DGKYD561288DB1A1DY1
Brand: DGKYD
Price: 1 USD

China RJ45 horizontal interface 8P8C with light, shielding spring, round needle mesh port DGKYD561288DB1A1DY1 wholesale

Brand Name : DGKYD

Model Number : DGKYD561288DB1A1DY1

Certification : RoHS/CE/UL/FCC/CE/ISO9001/ISO14001

Place of Origin : DongGuan of China

MOQ : 1 piece

Price : Please contact us to get the latest price.

Payment Terms : T/T, D/P, D/A, L/C, Western Union, MoneyGram

Supply Ability : 100K pcs/day

Delivery Time : 10 days

Packaging Details : Tray in Carton

Application : PCB

Feature : Shielded RJ45 network port

OEM/ODM : yes

Type : RJ45,

Shield : Yes

Product Name : RJ45 Modular Jack

Shielding : Shielded, EMI Finger

Number of Ports : 1x2 Ports

LED Color : Yellow/Green

Description : RJ45 Connector

Certificates : ISO9001/ROHS/CE/FCC

Contact Now

RJ45 horizontal interface 8P8C with light, shielding spring, round needle mesh port DGKYD561288DB1A1DY1

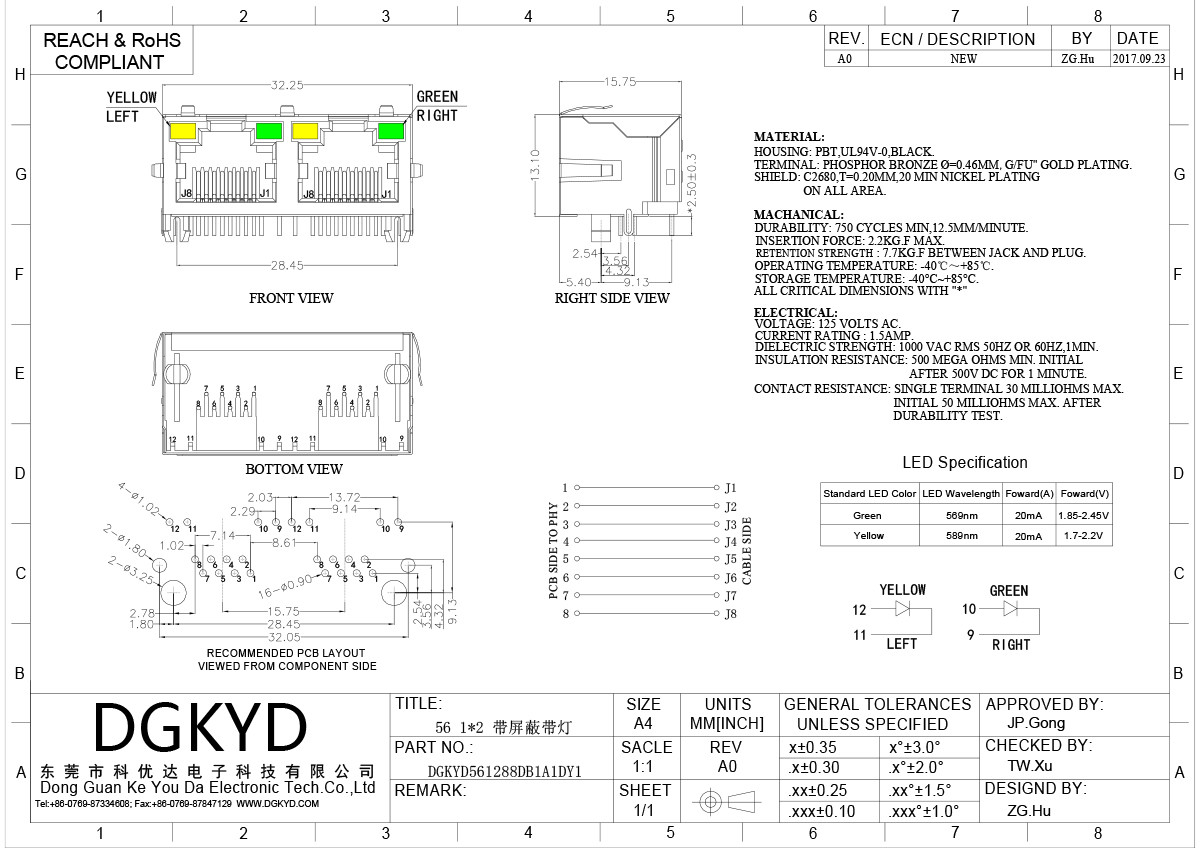

Product Specification Document

DGKYD561288DB1A1DY1.pdf

Parameters

Part Number	DGKYD561288DB1A1DY1	Brand	DGKYD/OEM/ODM
Place of Origin	Guangdong of China	Certification	RoHS/CE/FCC/CE/ISO9001/ISO14001
Product Type	Connector-Modular	Connector Style	Jack
Jack Type	RJ45	Connector Type	Modular Jack
Latch Style	Standard	Latch	TAB-UP
Filter	Without Filter	LED Option	Witht LED
LED Color	Yellow/Green	Panel Stops	With Panel Stops
Shielded	Yes	Applies To	Printed Circuit Board
Performance Speed	10/100/1000 BASE-T/TX	Suitable for welding type	Reflowsolding(Alternative).
Port Configuration	Double Ports	Number of Positions	8
Jack Configuration	1X2	Terminals per Port	8
Shield Material	Copper Alloy preplated with Nickel	PCB Mounting Orientation	Side Entry (Right Angle)
Contact Mating Area Plating Material	Gold Fu/6u/15u/30u/50u	Contact Base Material	Phosphor Bronze
Solder Tail Contact Plating Material	Tin-Lead over Nickel	PCB Mounting Style	Through Hole
Termination Method to PC Board	Through Hole-Press-Fit	Board Lock	With/Without Board Lock
Housing Material	PBT Polyester	Housing Color	Black
Housing Material Temperature	Standard	UL Flammability Rating	UL 94V-0

RJ45 horizontal interface 8P8C with light, shielding spring, round needle mesh port DGKYD561288DB1A1DY1

10/100/1000Base-Tx RJ45 double port 1X2 Side Entry (Right Angle) with Y/G LED
ROHS-6 peak wave solder temperature rating 260℃
Operating temperarure range :-40℃ to +85℃
Storage temperature range :-40℃ to +85℃
Number of positions:8
Number of contacts loaded:8
Shield:YES
Rohs compliant
LEDS: Y/G LED
EMI fingers:YES

Material specifications:

Plastic core:Glass fiber filler PBT Black(UL94V-0)
Contact:gold pin0.35mm thick phos bronze plated nickel then with 0.6u’gold
PCB Terminal:Phosphor bronze ,Tail-Tin over Nickl
Housing:Phenolic, PBT Black (UL94V-0)
Metal shell:Copper Alloy ,Tin and Nickel plated

Applications:

• Integrated RJ45 connector main used to :

• 10/100/1000M net card,PCMCIA net card,USB Hub,network switch,router,fiber optic transceivers,optical

transceiver, IP phone,internet set-top box,internet camera,net bridge,computer,telecommunication, MODEM,HomePNA,DSL／ADSL and so on.
