180 degree vertical entry modular jack rj45 connector without transformer for Net Card

PCMCIA Net Card modularjack rj45 Vertical without Transformer , 16.80mm Tap up

• 1X1 Single port RJ45 Modular jack without transformer
• 180 degree tap-up RJ45 connctor
• Insertion Force:2.2KG.F.max
• Retention Strength;7.7KG.Fmin between jack and plug
• Durabbilith:600mating cycles min
• Operating temperarure range :-40℃ to +85℃
• Storage temperature range :-40℃ to +85℃
• Number of positions:8
• Number of contacts loaded:8
• Shield:YES
• Rohs compliant(GP)

Material:

1. Housing :ABS RESIN(UL94V-0),PBT(UL94V-0),PA66(UL94V-0),PA46(UL94V-0)optional
2. Contact Wire:Diameter 0.45mm phosphor bronze gold plating over nickel,0.35mm thickness phosphor bronze alloy selective gold plating over nickel

3.Shield:0.20~0.25mm thickness brass with tin plated

4.Gold Plating :3u inch ,6u inch,15u inch,30u inch,50u inch

Competitive Advantage:

Keyouda has various types of appearance and many kinds of internal schematic products,high quality,

customer firstly ,100% test, 0 defect, short lead time are our best advantages

Applications:

• Integrated RJ45 connector main used to :

• 10/10/1000M net card,PCMCIA net card,USB Hub,network switch,router,fiber optic transceivers,optical

transceiver,IP phone,internet set-top box,internet camera,net bridge,computer, telecommunication, MODEM,HomePNA,DSL／ADSL and so on.

rj45 8p8c connectors

rj45 lan port

modular rj45 connector without transformer

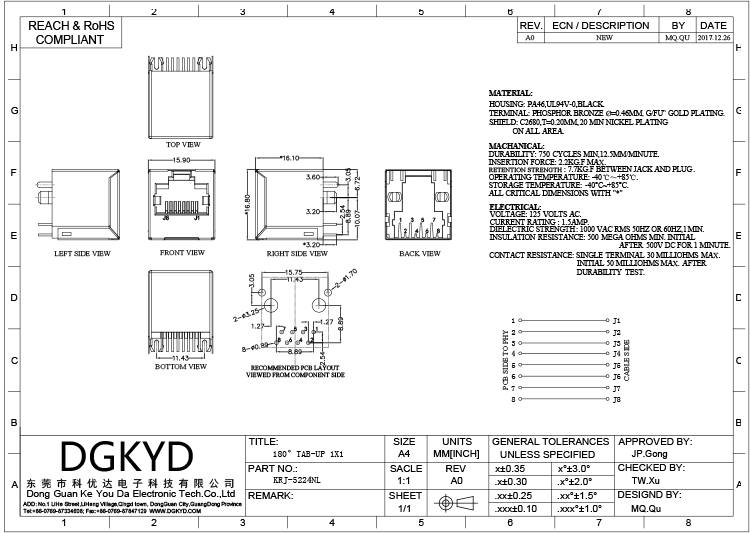

180 degree vertical entry modular jack rj45 connector without transformer for Net Card Images
