Right Angle 1 X 2 Port RJ45 Modular Jack With Internal Isolation Transformer 1000 BASE

Name: Right Angle 1 X 2 Port RJ45 Modular Jack With Internal Isolation Transformer 1000 BASE
Brand: DGKYD
Price: 1 USD

China Right Angle 1 X 2 Port RJ45 Modular Jack With Internal Isolation Transformer 1000 BASE wholesale

Place of Origin : DongGuan of China

Brand Name : DGKYD

Certification : RoHS/CE/UL/FCC/CE/ISO9001/ISO14001

MOQ : 1 piece

Packaging Details : Tray in Carton

Delivery Time : 10 days

Payment Terms : T/T, D/P, D/A, L/C, Western Union, MoneyGram

Supply Ability : 100K pcs/day

Model Number : KRJ-218QGYNL

Price : Please contact us to get the latest price.

Application : fiber optic,ip camera ,dvr,dsl,modem,wifi etc

Feature : RJ45 network port

OEM/ODM : yes

Type : Modular Jack

Contact Now

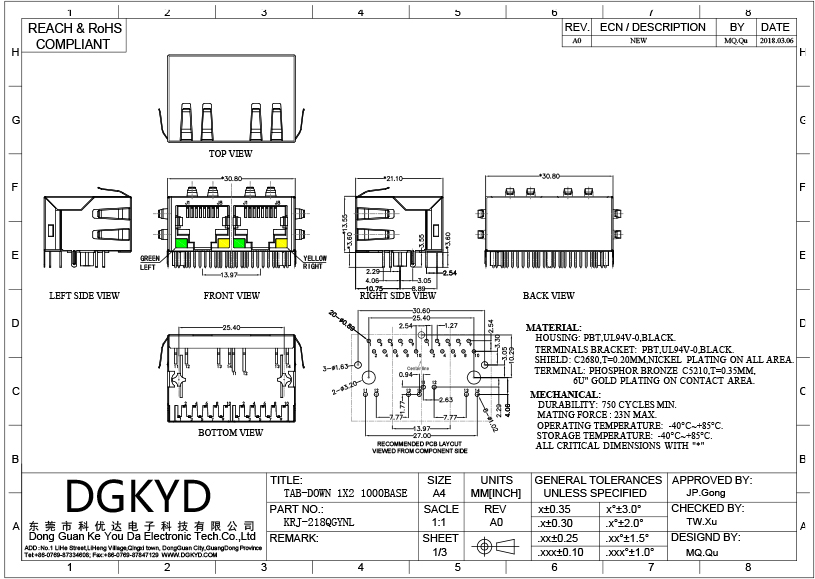

1000BASE Right Angle RJ45 Modular Jack with LEDS 1 x 2 Ports RJ45

1000Base-Tx RJ45 double port 1X2 Side Entry (Right Angle) with LEDS
Double port 1X2 Tab-Down RJ45 with internal magnetics

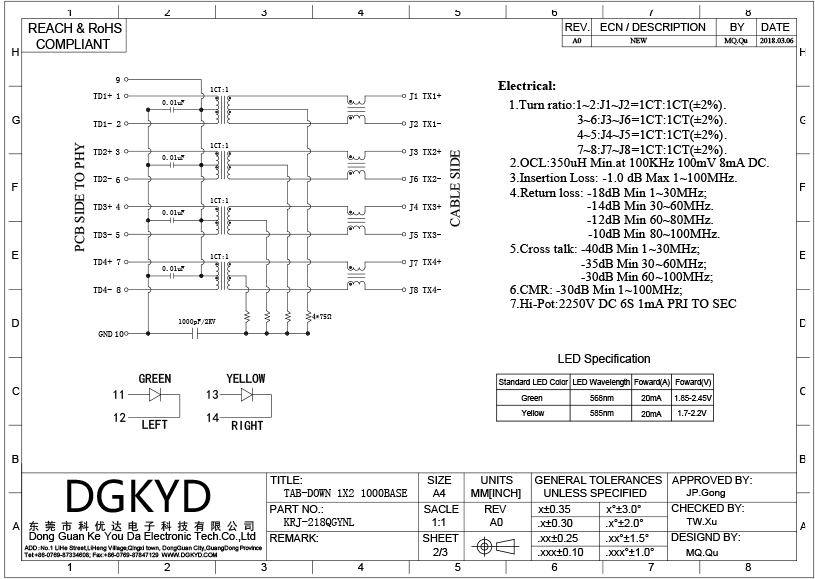

Internal magnetics are 100% electrically tested for HI-POT and functionality
Suitable for CAT5&6 fast Ethernet Cable or better UTP
350uHminimum OCL with 8mA bias current
High performance for maximum EMI suppression
Minimum 1500Vrms isolation per IEEE 802.3 requirement

Right Angle 1 X 2 Port RJ45 Modular Jack With Internal Isolation Transformer 1000 BASE

Applications:

Integrated RJ45 connector main used to :

10/100M net card,PCMCIA net card,USB Hub,network switch,router,fiber optic transceivers,optical transceiver,IP phone, internet set-top box,internet camera,net bridge,computer,telecommunication,

MODEM,HomePNA,DSL／ADSL and so on.
